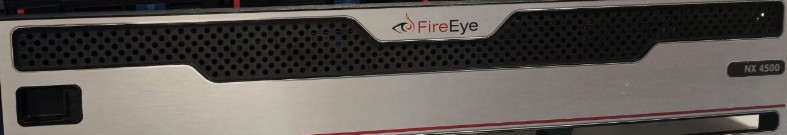

How to Fix Interface and IPMI Configuration Errors on FireEye NX 4500
If you’re working with a FireEye NX 4500 appliance and encounter issues while setting up network interfaces or configuring IPMI access, you’re not alone. Many network administrators face similar hiccups due to command errors or improper IP addressing. This guide will walk you through the correct configuration process, making sure everything works smoothly—from assigning IP addresses to saving the changes.
8/2/20252 min read
🔧 Interface Configuration on FireEye NX 4500
When setting up your device for the first time or reconfiguring it after a reset, it’s crucial to manually configure the Ethernet interface properly.
Here’s a reliable set of commands that will help:
# no interface ether1 dhcp
# interface ether1 Ip address 10.xx.xx.25 255.255.255.0
# Ip default-gateway 10.xx.xx.1 ether1
# Ip name-server 10.XX.XX.XX
# write memory
What These Commands Do:
Disable DHCP: Prevents the device from obtaining a dynamic IP.
Set Static IP: Assigns a permanent IP to the ether1 interface.
Configure Gateway: Ensures the device can reach other networks.
Set DNS Server: Allows domain name resolution (critical for updates or remote logging).
Save Configuration: Don’t forget write memory—this stores the config permanently.
✅ Tip: Always double-check your subnet mask and default gateway. A small typo can break connectivity.
🌐 IPMI Configuration – Enabling Remote Management
Once your interface is up, it’s time to configure IPMI (Intelligent Platform Management Interface). This is vital for out-of-band management, allowing you to monitor and manage the system remotely—even if the OS is down.
Use the following command set:
# ipmi lan ipsrc static
# ipmi lan ipaddr 172.XX.XX.58
# ipmi lan netmask 255.255.255.0
# ipmi lan defgw 172.XX.XX.1
# ipmi user set password ErroeSolvehub@123
# write memory
Why This Matters:
Static IP: Avoids IP conflicts and ensures reliable access.
Default Gateway: Enables remote access across different subnets.
Password Change: Always set a strong IPMI user password for security.
🔐 Security Reminder: Use a complex password and update it regularly. Default passwords are a major vulnerability.
🧠 Common Mistakes to Avoid
❌ Skipping write memory: Your settings will vanish on reboot.
❌ Using wrong interface (e.g., ether2 instead of ether1).
❌ Overlapping IP ranges between IPMI and primary interface.
❌ Forgetting to allow IPMI access in your firewall or VLAN.
✅ Final Checklist
Before calling it done, make sure:
The interface responds to a ping from your workstation.
IPMI is reachable via your browser or IPMI tool.
Settings persist after a reboot (write memory is key).
You’ve documented the IPs and passwords somewhere secure.
🔍 Conclusion
Configuring a FireEye NX 4500 properly ensures both performance and remote manageability. Whether you're setting it up for the first time or troubleshooting connectivity issues, following a structured, error-free process makes all the difference.
Keep this guide handy for future deployments—and always back up your configuration before making major changes.
